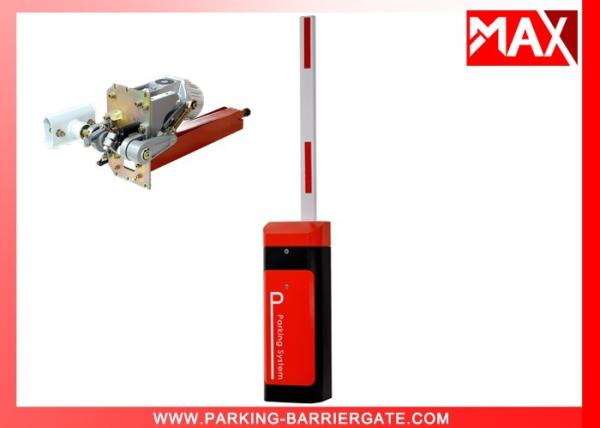

Underground Parking Lot Automatic Parking Barrier 90 Degree Folding Arm
Features
Easy installation and maintenance reduces your labor cost Simple structure and no limit switch design ensures easy installation and maintenance which reduces your labor cost |
Heavy-duty and simple-design housing The housing adopts 2mm precise machining cold-rolled plate and static electricity sprayed anti-UV surface which is non-scale and unfading in 5 years, conformed to the IP54 dustproof and waterproof, Simple design also decorates your premises |
Anti-collision protects boom arm (optional) Anti-collision mechanism will protects the boom arm not to be damaged once boom arm was collided by a vehicle. |
Safety--- Anti-hit by Loop Detector (Optional) While barrier boom moving down, If a coming vehicle was detected to be existing on the ground induction coil, the arm will go back to vertical position immediately until loop input was dismissed and then the arm will go down immediately. |
Safety--- Anti-hit by IR photocell (Optional) While arm moving down, If infrared transportation between transmitter and receiver is blocked by human or vehicle, the arm will go back to vertical position immediately. The arm will automatically close once the infrared transportation recovers. |
Automatically close after the given time Once this function is set “ON”, the barrier will automatically close after given time (1-90 seconds adjustable) if there is no vehicle passed after barrier open. |
Automatically Close by loop detector (Optional) If loop detector is installed, after vehicle passed the barrier will automatically close once the loop input was triggered |
Automatically open by loop detector (Optional) If loop detector is installed, when barrier boom is in horizontal position, the barrier boom will go up immediately once the loop input was triggered |
Manually control in case of no power Once power is off, just open the cabinet and manually control the barrier by a gear mechanism. Also barrier boom can be manually locked in any position between horizontal and vertical, the lock status will remain until unlock manually |
Product parameters:
| Modle number | MX-90 |
| Size | 1000*352*302mm |
| Remote control distance | ≥30m |
| Motor Rational Speed | 1400rmp |
| Boom Length (Max) | 6M |
| Relative humidity | ≥90% |
| Protection grade | IP44 |
| Operating Temperature | -45°C to 75°C |
| Boom Type | Straight arm: Mar 1- 6 meters optional, size 45×100mm aluminum alloy. Folding arm: 90°folding arm / 180°folding arm, aluminum alloy Fence arm: Two or three fence arm, Mar1- 6 meters, aluminum alloy |
| Advantages | 1. quick delivery time, 3-5 days for 50 sets after received advance deposite 2. 7 years OEM/ODM experience 3. quick response for handling problems |
Common malfunctions and solutions
1. Motor works but there is no reacion on the arm;
a. Please check whether the clutch device is locked or not.
2.The boom could not rise up or fall down to the end;
a. When change a long boom to a short one, please readjust it ,
b. The sensor dose not plug well, please check it.
c. The "Speed adjust switch" is wrong adjust, please readjust it.
3.The distance of the charge capacity of the remote controller is enough or not
4. There is no reaction when pressing the remote controller buttons,
a. Please check whether the power is supplied to the barrier gate or not,
b. Please check whether the fuse is burnt out or not
c.Please check whether the code both in the remote controller and the controller board are accordant or not
2. Why does the controller panel operate with "Di Di Di" abnormal noises?
3. Why does the barrier finish half operation of opening and closing?
4. When barrier closed, why is there a 5 degree angle of inclination?
5. When barrier finish open, but it closes itself without any order
control, what's the problem?
6. Why does the arm wave a lot when opening and closing?
7. Rubber linning installation suggestion:
8. Can you accept OEM/ODM order?
|
|
