    1800KGS Sliding Autogate System Motor Heavy Duty Remote Control Slide Gate Opener

    Ask Lasest Price
    Brand Name : MAX
    Model Number : MX-410
    Certification : CE, ISO, SGS
    Price : negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 800 set/month
    Delivery Time : 3-10 working days after received your payment
    • Product Details
    • Company Profile

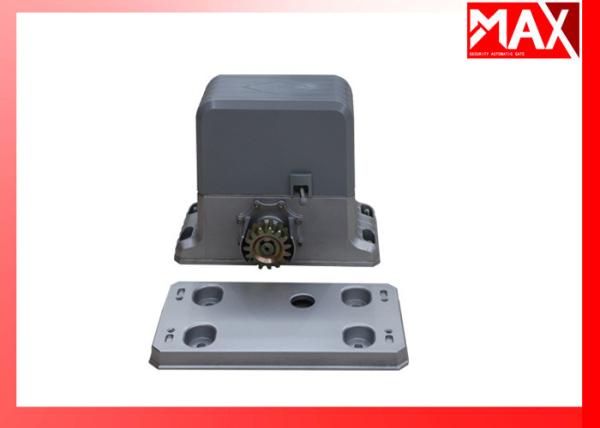

    1800KGS Sliding Autogate System Motor Heavy Duty Remote Control Slide Gate Opener

    1800KGS Sliding Auto Gate System Motor Heavy Duty Remote Control Slide Gate Opener


    automatic gate motor description

    • Power supply range: AC220V/110V±10% 50/60Hz
    • Net weight: 8.5kg
    • Max loading weight: 1800kg
    • Working temperature of motor: -25 to +55 Celsius degree
    • Working humidity: ≤85%
    • Rated power: 200w
    • Output gear module: M=4
    • Output gear number: Z=16
    • Open(close) speed: v=12m/min
    • Maximum pull: 1100N
    • Package one set in one carton

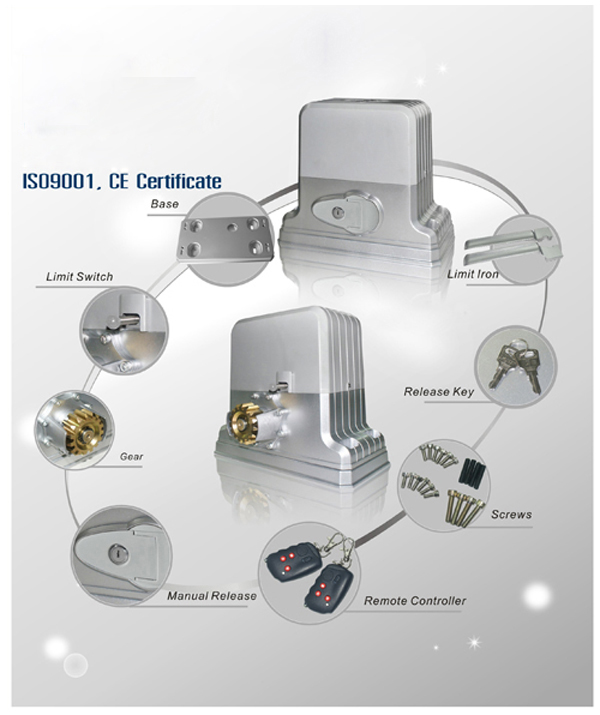

    Each kit includes:

    • 1 x motor
    • 2 x remote controllers
    • 1 x control panel
    • 1 x base plate
    • 2 x magnets
    • 1 x user's manual

    Functions of sliding gate opener :


    1) Integrated mechanical and electrical, all functions on one controller
    2) Radio controller or lines to control open, close and stop functions
    3) Magnetic limit switch, the door stops when it moves to the limit
    4) Accurate limit braking
    5) Electronic soft-start
    6) Dialing switches to adjust the motor rotation in both directions
    7) Open and close limits have a self-locking function
    8) Intelligent operation - if an obstacle is detected when the door is closing, it will reverse to open,
    then after 10seconds it attempts to close automatically unless you press the stop keystroke
    9) Movement indication - the indicator lights up when the door is moving
    10) Optional line control or remote control
    automatic gate motor services:
    Others information of sliding gate opener :
    • Guarantee time: 1 year
    • Delivery deadline: 8 days delivery after receive your payment
    • Package: 1 set in a standard carton packing
    • Minimum order

    automatic gate motor Packaging& Shipping


    Packing list
    NameQuantityUnitRemark
    Sliding gate operator1setNecessary
    Remote control2pcsNecessary
    Internal hexangular bolt4pcsM8*40
    Internal hexangular bolt4pcsM6*16
    Left limit iron1pcsNecessary
    Right limit iron1pcsNecessary
    Base board1pcsNecessary
    Release key2pcsNecessary
    Manual1pcsNecessary
    Infrared photocell1setOptional
    Radio emitter1setOptional

    automatic gate motor FAQ:


    Communication with customers:


    1 The motor runs but the sliding gate operator doesn't work.
    A: Check whether the clutch is closed.
    2 The power indicator light doesn't flash and the key doesn't
    react.
    A: Check whether power is connected right.
    B: Check whether the fusel is burned, it yes, please exchange it.
    3 The opening and closing limit can not work.
    A: Check whether the limit adjustment switch is installed right.
    B: Check whether the limit iron is installed right. Adjust the
    position of the limit iron.
    4 Crash proof is not effective.
    A: Check whether the connection of crash proof is correct.
    B: Check whether the photocell is installed right.
    C: Check whether the connection of the wire of the loop
    detector is right .
    5 When the gate just close up, it turns to open.
    A: Check whether the voltage is normal.
    B: If the crash proof equipment is installed, please check
    whether it works well.
    6 The remote control doesn't work
    A: Check whether the battery is low. If yes, change it.
    B: Check whether the code of the remote control is the same
    with the code of the control panel.
