Manufacture OEM 3M 6M Automatic Boom Barriers with Heavy Duty Cooling Fan Motor
Technical details:
| Model | MX-50 (1st generation machine core) |
| Power | 80w |
| Material | Cold roll plate, Galvanized plate or stainless steel varnish baking, 3 years without fading |
| Running Time | 0.6s, 1s, 1.8s, 3s,4s, 6s |
| Operating Temperature | -45°C to 75°C |
| Voltage: | 220V ± 10%, 110V ± 10% |
| Relative Humidity | <90% coagulation free |
| Motor speed | 30r/min |
| Boom length | Max 6 meters |
| Net weight: | 50Kg |
| MCBF | ≥5, 000, 000 times |
| Housing Size | 320*280*935mm |
| Traffic light | Optional |
| Rail material | Aluminum Alloy |
| Boom Type | Straight arm: Mar 1- 6 meters optional, size 45×100mm aluminum alloy. Folding arm: 90°folding arm / 180°folding arm, aluminum alloy Fence arm: Two or three fence arm, Mar1- 6 meters, aluminum alloy |
| Related accessories | infrared sensors, loop detectors,traffic light, UHF readers |
| Application | Parking Lots, Toll Gates, Goods Yards, Railway Crossings, |
Each barrier gate will include:
1 pcs Gate Barrier
1 pcs arm boom (from 1m to 6m can customised)
1 pcs control panel(built inside)
2 pcs remote controllers
1 pcs manual book
1 pair photocell( optional)
1 loop detector( optional)
1 RS485( optional)
Functions&Features:
 |

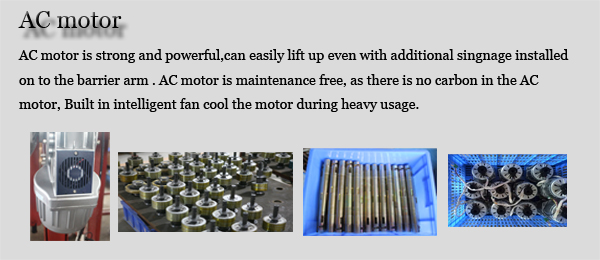

AC MOTOR-The Drive Unit#1 For alternating current, does not require limit switches nor a
friction clutch, and maintenance-free
|
Compressed Balance Spring Barrier gate arm weight is counter-balanced via a adjusted compression spring, avoid accidentscaused by tension spring |
Photoelectronic Limit Switch Multiple protection mechanism: photoelectric limit, motor sensor memory limit, loop detector, air pressure wave switch, infrared photocell ensure the barrier gate operate accurately and safely
|
Arm Auto Reverse Built in smart collision detection technology allows arm to auto reverse when hit on obstacles during closing. Prevent futher damage on vehicle
|
Swing Out Mechanism
|
Parking list:
| Items | quantity | items | quantity |
| Paint-coated case | 1 | motor | 1 |
| Transmission | 1 | limit switch | 1 |
| Barrier arm | 1 | capacitor | 1 |
| Spring | 1 | circuit board | 1 |
| Remote control device | 2 | console control device | 1 |
| Installation kit | 1 |
What can we do for our customer?
Service for free:
1. One year free service is supplied(not including the arm)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and usage
4. Overdue service items are out of our promise.
|
|
