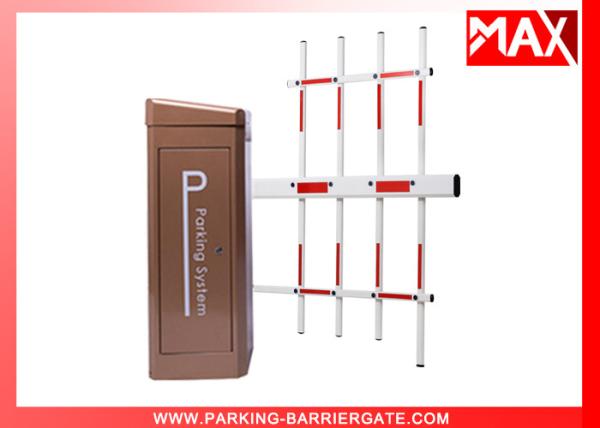

24V DC PMSM Brushless Servo Motor Automatic Barrier Gate Barrier Road
Function Description:
1. When Power off, gate automatically open, no clutch design, no need human intervention. When power on, gate automatically reset,
restore to the gate closing state, truly unattended, fire safety standards. If special requirement, manual operation is required when
power off . Operating arm open and close by hand also can be realized by setting up control board DIP switch, which ensure that the system can be used at any time.
2. The use of Single Balance Spring device, good regulation, no noise, indefatigable, not easy to break, safe and reliable.
3. A variety of input and output modes can be selected, normally open normally closed optional.
4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves prominent place to install.
5. Closing speed can be adjusted, 0.9S, 1.3S.
6. Barrier gate up&down signal relay switch output.
7. Barrier gate running state: OK signal output indicating that the gate is working properly.
8. Barrier gate operation abnormal alarm signal output.
9. Traffic light relay switch signal output.
10. External loop detector signal anti-smashing interface, infrared sensor signals anti-smashing interface.
11. Count mode interface.
12. Arm Open priority anti-smashing function, regardless of the current gate in what state, the operator through the triple push button,
software or remote control to issue a gate arm up, the gate will give priority to the implementation of the opening action.
13. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing out to avoid damage to the vehicle
and barrier gate machine.
14. Delay down selection function.
15. high sensitivity arm auto reverse function (intensity can be adjusted)
16. Parking system interface
17.RS485 or RS232 network communication control up&down interface (no need to install communication module)
18. Anti-collision alarm signal interface.
19. Arm direction can be changed easily
20. Adjustable speed port (S curve adjustment)
21. High-strength precision cast steel, industry moving parts beyond the industry quality
Product parameters:
| MX-88 barrier gate | V06T | V09T |
| Max Boom Length and Diameter | 2500mm, 75mm | 3000mm, 75mm |
| Open/Close Time | 0.6sec | 0.9sec,2.5sec,4.5sec |
| Power Supply | 24/100/240VAC,50/60Hz | 24/100/240VAC,50/60Hz |
| Power Consumption | max.150W | 100w |
| Machine Case | Varnished 2.0mm steel plate | Varnished 2.0mm steel plate |
| Machine Case Size(W*D*H) | 342*312*959mm | 342*312*959mm |
| Net Weight | 43kg | 42.6kg |
| Operating Temperature Range℃ | -45℃~+85℃ | -45℃~+85℃ |
| Driving Method | Servo motor | Servo motor |
| Protection System(IP) | 65 | 65 |
| Insulation Class | F | F |
| Relative Humidity | ≤90% | ≤90% |
| Motor Speed | 3000r/min | 3000r/min |
| Remote Control Distance | ≤100m (open, sunny weather) | ≤100m (open, sunny weather) |
| Output Torque | 1.2N.M*140=160N.M | 0.86N.M*140=120N.M |
| Running Noise< | 45dB | 45dB |
| Surface Treatment | Outdoor metal powder electrostatic spraying | Outdoor metal powder electrostatic spraying |
Our Services
Service for free:
1. One year free service is supplied(not including the arm)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and usage
4. Overdue service items are out of our promise.
|
|
