OEM Nice Automatic Barrier Gate for Parking Entrance And Exit
WHAT MAX Barrier Gate ?
MAX Barrier Gate, also known as the block device, was originally
introduced from abroad, the English name Barrier Gate, is dedicated
to the road on the restricted motor vehicle access channel
management equipment, is widely used in highway toll stations,
parking system management vehicle access, In the management of
vehicle access. Electric barrier can be achieved through the
wireless remote control landing gear alone, can also be through the
parking management system (IC card management system) to implement
automatic management of the state, admission card to take off the
vehicle, the appearance of parking fees automatically after the
release of vehicles.
Quick Details:
| Type | MX-50 |
| Operation time | 1s, 1.8s, 3s, 6s. Customized |
| Arm Type | Straight Arm: Max 6 meters, Size 45×100mm and 45*80 mm aluminum alloy Fence Arm: Two or three fence arm, Max 6 meters, aluminum alloy |
| Material | Galvanized plate or Cold roll plate, 2mm thickness sheet 3 years without rust, shedding and fading |

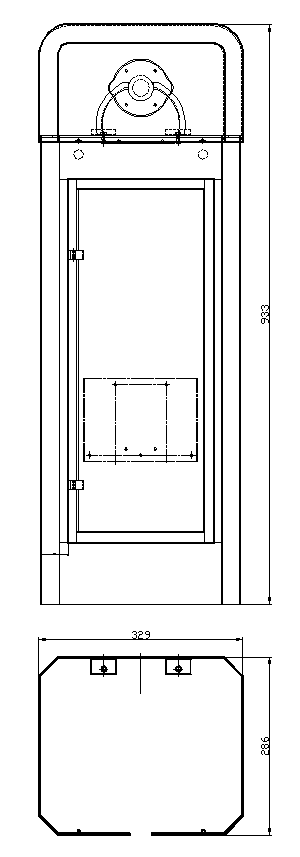

| Size | 320*280*935 mm |
| Spring And Bearing | Heat Treatment: more durable, more than 5 million times through operation testing |
| Rating Power | 120W |
| Rating Voltage | AC 220V/110V±10%, 50/60HZ |
| Remote Control Distance | Usually more than 30 meters, if there is less obstacles, even 50 meters or more |
| Packing Size | 1020*375*467mm , with seven layers carton case inside with air bubble film for protection |
| G.W | 50 KG |
| Delivery | By Sea: big order(more than 100 sets), Cheap, suggested By Air: small order(1-15 sets), quick and cheap, suggested |
| Payment | Sample: full payment Order: usually 40% advance deposite, balance before shipment |
| Advantages | 1. Professional Manfacturer for more 8 years 2. Mould Production, High Accuracy 3. Heat Treatment, more durable than normal 4. Better Service from Professional Work Team |
| Application | Suitable for indoor as well as outdoor parking area at airport, shopping mall, warehouse,hotel, factories, condominium, car rental companies, etc. It canalso be customized to beused together with any auto-pay ticketing parkingor access control system |
Functions:
1)By-security. the barrier gate will automatically go back when meet obstacles during closing.
2)AC motor is more powerful and no maintenance.
3)Barrier Boom/arm can be chosen from 2.5 meters to 8 meters, and barrier gate.
4)Closing time is also arranged from 0.6 second to 8 seconds.
5)The barrier gate can be both right-installed and left-installed.
6)All the operation process is soft without any noise and shaking.
7)Infrared photocell interface, loop detector interface and IC system.
8)interface are reserved for the other functions.
9)Green light and red light are used inside for indication the position of the boom
PICS

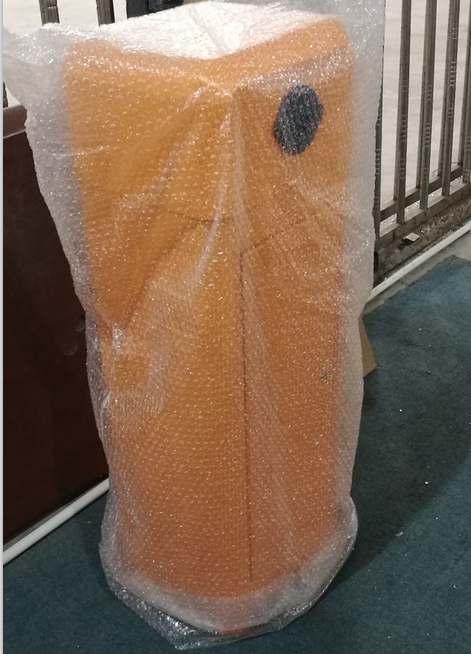

Packing&Shipping
We use strong carton case with air bubble filled inside to protect products and save your cost.
|
|
