    Automatic Boom Arm 2 Fences Parking Barrier Gate for Parking System

    Ask Lasest Price
    Brand Name : MAX
    Model Number : MX-50
    Certification : CE, ISO, SGS
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C/Paypal
    Supply Ability : 2000 set/month
    Delivery Time : 3-10 working days after received your payment
    • Product Details
    • Company Profile

    Automatic Boom Arm 2 Fences Parking Barrier Gate for Parking System

    Automatic Boom Arm 2 Fences Parking Barrier Gate for Parking System
    Applications:
    Barrier gates are typically used at level crossing, drawbridges, parking facilities, checking points and entrances, they could also be used for controlling passage through toll booths.
    In some places, barrier gates are installed across suburban streets as a traffic calming measure, preventing through traffic,while allow authorized vehicles such as emergency services and buses to take advantage of the shorter and more direct route.

    Features:
    1. Remote control within 30 meters, easy operation.
    2. Low speed electro-mechanical device, runing with little heat, ensure the barrier gate work stably in an intensive duty cycle.
    3.Shock mitigation, work without noise and shake .
    4.Boom length and style could be customized.
    5.External structure made of durable steel and coated with automobile paint, the boom gate could resist extreme high/low temperature and severe climate .
    6. The color of coating is optional.
    Technical information :
    ModeI ItemMX-50 Barrier Gate
    Boom type2 level fencing boom
    Boom length1~6 meters
    Working cycle100%
    Voltage220V± 10%, 110V± 10% 50/60 Hz
    Remote controller2 Pcs
    Power80W
    Working temperature-40~+75 ºC
    Protection gradeIP44
    Net weight65kg

    Running time and boom length
    ModelMX-50
    Running time1 sec3 sec6 sec3 sec6 sec3 sec6 sec3 sec6 sec
    Boom typeStraight90 ° folding180 ° folding2 fence3 fence
    Max boom length3m4.5m6m3m5m3m5m4.5m4m
    Boom dimension (W×H)45x80mm45x100mm
    Boom weight3kg4.5kg5kg6.5kg8kg9kg11kg7kg7.5kg
    Voltage220V±10%, 110V±10%
    Frequency50/60HZ
    Motor voltage220V
    Power120W
    Working temperature- 35 °C ~+60 °C
    Protection gradeIP54


    Package:
    Packaging Details: carton case
    Delivery Detail: 5-7 working days

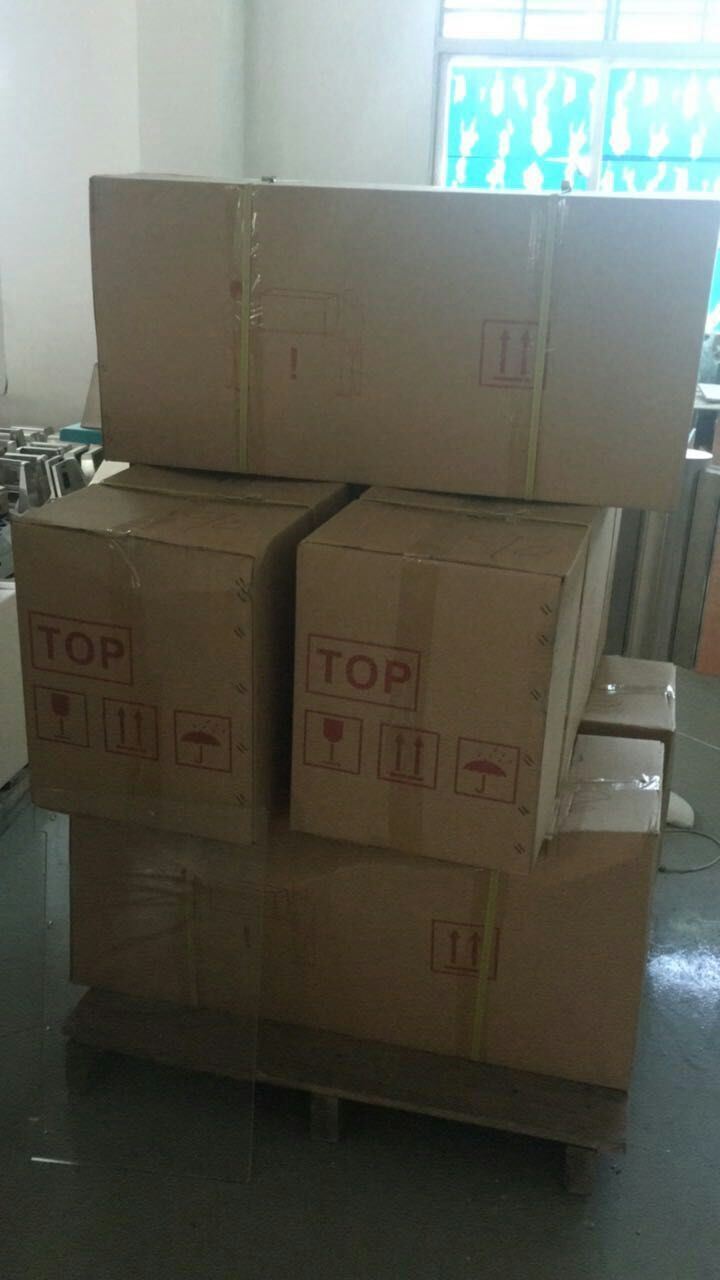

    Package details
