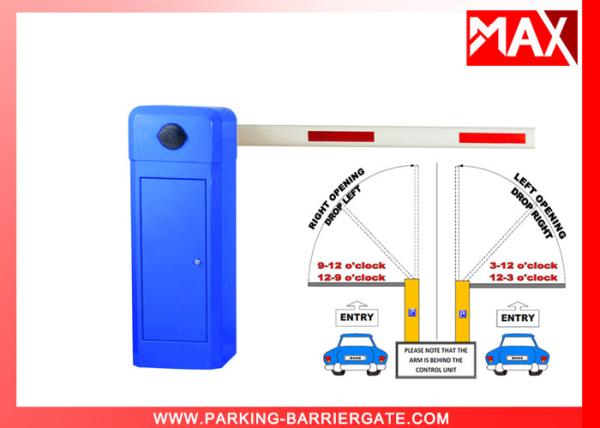

Commercial Automatic Parking Barrier Gate Vehicle Access Control
HIGHLIGHTS:
Low noise and vibration, high reliability, long life, smooth speed.
Reserved for a variety of interfaces, external infrared, vehicle
detectors and other accessories to meet the security needs.
Manual, automatic selection, equipped with remote control and
manual control buttons, remote control, user-friendly operation.
Spoke lever with a special type of aluminum, can be affixed with
two-color reflective film, can be clearly visible at night.
Can be equipped with straight rod, folding, fence a variety of gear
lever to meet different market needs.
MORE DETAILS ABOUT LENGTH AND SPEED YOU NEED ,
AND THE TYPE OF ARM YOU WANT ,WELCOME CONTACT.
APPLICATION
Parking Lots, Toll Gates, Goods Yards, Railway Crossings,Highway, Hotel, Community, Bus Station,Commercial Premises, Aparment Block ,airport, shopping mall,warehouse,hotel, factories, condominium, car rental companies etc.
| Model | MX-20 |
| Size | 320*250*944.5mm |
| Voltage | AC 220V/110V±10%, 50/60HZ |
| Rated Power | 120W |
| Humidity | ≤90℃ |
| Operation time | 1s, 1.8s, 3s,4s,6s. Customized |
| Working Temperature | -40℃~+85℃ |
| Boom type | Straight boom ,90°folding boom ,180° folding boom ,two fence boom ,three fence boom,flexible |
| Material | Galvanized plate or Cold roll plate, 2.0mm thickness sheet 3 years without rust, shedding and fading |
| Spring And Bearing | Heat Treatment: more durable, more than 5 million times through operation testing |
| Remote Control Distance | Usually 80-120 meters, if there is less obstacles, even 150 meters or more |
| Packing Size | 1100*430*455 mm with seven layers carton case,inside with air bubble film for protection |
| Delivery | By Sea: big order(more than 100 sets), Cheap, suggested By Air: small order(1-15 sets), quick and cheap, suggested |
COLORS:
Gray,orange, blue, yellow, red, black,customeized
CORE:
Heat Treatment: more durable, more than 5 million times through operation testing
Booms :
Straight Arm: Max 6 meters, Size 45×100mm and 45*80 mm aluminum alloy
Fence Arm: Two or three fence arm, Max 6 meters, aluminum alloy
boom lenghths with speeds
| description | Max boom length | Action time (s) | boom height ( m) |
| Slow speed ,straight | L ≤ 6 m | 6 | 0.83 |
| Medium speed ,straight | L ≤ 4.5 m | 3 | 0.83 |
| Quick speed,straight | L ≤ 3 m | 1-2 | 0.83 |
| Fastest speed ,straight | L ≤ 2.5 m | 0.6-0.8 | 0.83 |
| 90° Folding boom | L ≤ 5 m | 0.6-6 | 0.83 |
| 180° Folding boom | L ≤ 5 m | 0.6-6 | 0.83 |
| fence boom (2/3) | L ≤ 4.5 m | 6 | 0.9/1.5 |
ps: the Boom Height means height from the boom holding point to the ground.
OEM/ODM SERVICE
1) Boom can be LED arm, when the boom open, the light will turn Green, when the boom close, the light will turn Red.(or Steady- blink-steady).
2) Housing design and color can be customized.
3) All neutral packing, we can print your logo at the carton.
4) There is no any chinese stickers or company information at the product. but we can put yours on if you want.
|
|
