Shenzhen Maixiang Technology Co.,Ltd
8 Years
| Ask Lasest Price | |
| Brand Name : | MAX |
| Model Number : | MX-50 |
| Certification : | CE, ISO, SGS |
| Price : | Negotiation |
| Payment Terms : | Western Union, T/T, L/C/Paypal |
| Supply Ability : | 2000 set/month |
| Delivery Time : | 3-10 working days after received your payment |

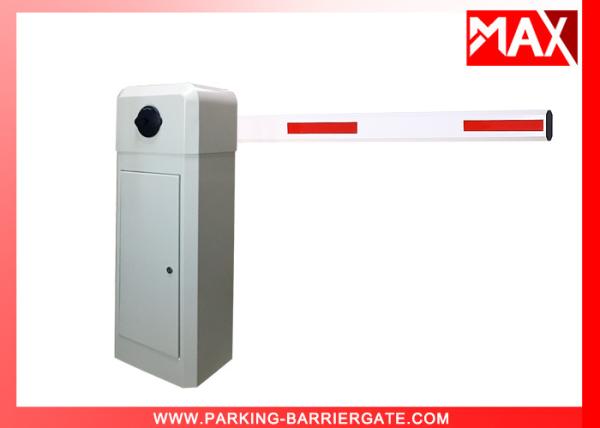

USA Market Barrier Gate With Voltage 110V and White Housing Color
Our Advantages:
1. OEM Brand, Logo, Label available
2. 1 Year Standard Warranty, excellent after-sales service
3. 24h*7d at your service to give you best support
4. Detailed installation manual and wiring diagram to make
everything be easy
5. Fast finishing time for you to become more competitive at your
local market :3-5 days for small order.
Specifications:
| Model | MX-50 (machine core mx-1) |
| Power | 100w/120W |
| Material | Cold roll plate, Galvanized plate or stainless steel varnish baking, 3 years without fading |
| Running Time | 1.8s, 3s, 6s |
| Operating Temperature | -45°C to 75°C |
| Voltage: | 220V ± 10%, 110V ± 10% |
| Relative Humidity | <90% coagulation free |
| Motor speed | 30r/min |
| Boom length | Max 6 meters |
| Net weight: | 50Kg |
| MCBF | ≥5, 000, 000 times |
| Housing Size | 320*280*935mm |
| Traffic light | Optional |
| Rail material | Aluminum Alloy |
| Boom Type | Straight arm: Mar 1- 6 meters optional, size 45×100mm aluminum alloy. Folding arm: 90°folding arm / 180°folding arm, aluminum alloy Fence arm: Two or three fence arm, Mar1- 6 meters, aluminum alloy |
| Related accessories | infrared sensors, loop detectors,traffic light, UHF readers |
| Application | Parking Lots, Toll Gates, Goods Yards, Railway Crossings, |
Functions & Features
|
Packaging & Shipping:
| Packing list | |||
| Name | Specifications | Quantity | Remarks |
| Machine core | Good in working | 1 | Main part |
| Barrier arm | Straight, folding or fence arm | 1 | Optional |
| Boom press board | 1 | Fixing the boom | |
| Self-tapoing screw | ST4*16 | Fixing the boom | |
| Self-tapoing screw | st3*10 | 4 | Fixing the boom |
| Supporting pole | 1 | Fupporting the boom | |
| Expanion bolt | M16*150 | 4 | Fixing the case |
| Hexagonal Inner Screw | M8*35 | 4 | fixing the case |
| Clutch key | 1 | clutch device | |
| Case Key | 2 | for case and cover locking | |
| Balance spring | According to length of barrier arm | 1 | for sapre usage |
| Remote emitter | less than 30m is available | 1 | For remote control |
| Remote conrol handles | less than 30m is available | 2 | For remote control |
| Instruction | in English | 1 | For reference |
| RS485 interface | 1 | Optional | |
| Disc | 1 | Optional | |
| Communication Mould | 1 | Optional | |
| Cover head | 1 | 3 years without fading | |
| Expanion nut | M8 | 4 | Fixing the supporting pole |
FAQ:
1. Are you manufacturer or trade company?
We're professional manufacturer who has our own factory in Shenzhen Pingshan since 2007.
2. What is your MOQ?
As for usual order, there is no MOQ; For OEM order, at least 30 sets.
3. What is your delivery time?
As for usual order, it is 3-5 days after received your payment with 50 sets order quantity.
For OEM order, it is 7-15 days after receieved your payment with 30 sets order quantity.
4. What is the terms of payment?
30%-40% advance deposite, 60%-70% balance before shipment for large quantity.
5. How long will your gate barrier working?
Gate barrier life span is 5-10 years.
For the things that most customer want to know:
1. MOQ: for our usual order, there is no MOQ; But for customized order, like customize color, printing LOGO, corrosion protection base, the MOQ is 30 sets.
2. Delivery Time: as for usual order, 3-7 days when we received your advance deposite or full payment(including Saturday), For customized order, it is 10-15 days after receiving your payment(including Saturday)
3. Production Potential: 80 sets of barrier gate finished in one day for usual order, for customized order, according to your detailed requirements
4. Quality Control: 3 control lines and 6 QC for Checking, first is motor testing line which can promise you good and durable motor;second is machine core testing line which can promise you stable function;final is barrier gate testing line which can promise you perfect working with its required boom with our experienced technicist's debugging
5. Service and Support: as for presales service, we will provide all the information you need and questions you asked; for aftersales, we will offer long term technical support, and we're sure that any of your feedback will receive our careful attentions and prompt reply.
6. Warranty: 12 months Since the barrier gate you receive
7. Delivery Way: we can send the goods to you by Sea, Airplane and Express, but you need tell us which kind of way do you prefer and relative information. for example, if you want to delivery by sea, please kindly send us the shipping requirements, like FOB or CIF, and your nearby port.
8. Payment: for sample order: full payment; for usual order, 30-40% advance deposite, balance before shipment for large quantity.
As for here, if you have any pending orders or inquiry, please kindly feel free to contact us, we're sure that any of your feedback will receive our careful attentions and prompt reply.
|
|
