Shenzhen Maixiang Technology Co.,Ltd
8 Years
| Ask Lasest Price | |
| Brand Name : | MAX |
| Model Number : | MX-50 |
| Certification : | CE, ISO, SGS |
| Price : | Negotiation |
| Payment Terms : | Western Union, T/T, L/C/Paypal |
| Supply Ability : | 2000 set/month |
| Delivery Time : | 3-10 working days after received your payment |

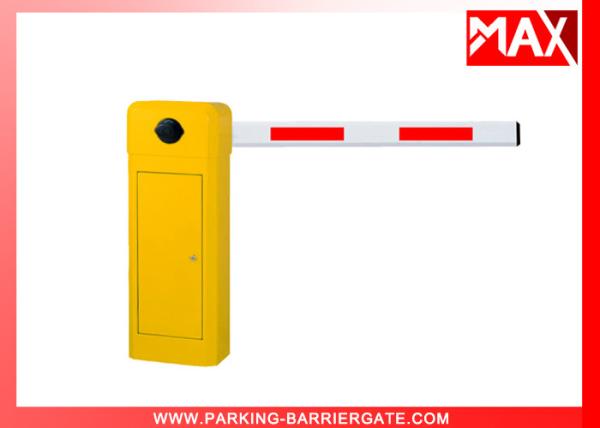

OEM Photocell Parking Lot Barriers For Car Parking Management System
Car Parking Barriers Kit
1 * motor
1 * boom (from 1m to 6m can customized)
1 * control panel
2 * remote controllers
Specifications:
| Model | MX-50 (MAX 1st generation machine core) |
| Power | 80w |
| Material | Cold roll plate, Galvanized plate or stainless steel varnish baking, 3 years without fading |
| Running Time | 1s, 1.8s, 3s, 6s |
| Operating Temperature | -45°C to 75°C |
| Voltage: | 220V ± 10%, 110V ± 10% |
| Relative Humidity | <90% coagulation free |
| Motor speed | 30r/min |
| Boom length | Max 6 meters |
| Net weight: | 50Kg |
| MCBF | ≥5, 000, 000 times |
| Housing Size | 320*280*935mm |
| Traffic light | Optional |
| Rail material | Aluminum Alloy |
| Boom Type | Straight arm: Mar 1- 6 meters optional, size 45×100mm aluminum alloy. Folding arm: 90°folding arm / 180°folding arm, aluminum alloy Fence arm: Two or three fence arm, Mar1- 6 meters, aluminum alloy |
| Related accessories | infrared sensors, loop detectors,traffic light, UHF readers |
| Application | Parking Lots, Toll Gates, Goods Yards, Railway Crossings, Commercial Premises, Aparment Block |
| Advantages | 1. quick delivery time, 3-5 days for 50 sets after received advance deposite 2. 7 years OEM/ODM experience 3. quick response for handling problems |
| Our other products | MAX has other products: tripod turnstiles, sliding gate motor, flap barrier,swing gate motor, pedestrian access control turnstiles and barriers, |
Functions & Features:
1. Manual release
2. Machine core with compression spring, effectively avoids the
accidents caused by spring breaking
3. Die-casting aluminum alloy motor, precision and good at thermal
radiating
4. Motor cooling fan, solving the problem of heat-protection
5. Double safety limit switches (photoelectricity limit
switch/motor memory sensor)
6. Reversing on obstacle
7. Auto-closing
8. Support the INFRARER PHTOCELL for anti-bumping function
(optional)
9. Support the external and internal VEHICLE LOOP DETECTOR
(optional)
10. Traffic light interface
11. Wire control (switch signal)/ Remote control (418MHZ)
12. RS485 communication module (optional)
Parking & Shipping:
| Packing list | |||
| Name | Specifications | Quantity | Remarks |
| Machine core | Good in working | 1 | Main part |
| Barrier arm | Straight, folding or fence arm | 1 | Optional |
| Boom press board | 1 | Fixing the boom | |
| Self-tapoing screw | ST4*16 | Fixing the boom | |
| Self-tapoing screw | st3*10 | 4 | Fixing the boom |
| Supporting pole | 1 | Fupporting the boom | |
| Expanion bolt | M16*150 | 4 | Fixing the case |
| Hexagonal Inner Screw | M8*35 | 4 | fixing the case |
| Clutch key | 1 | clutch device | |
| Case Key | 2 | for case and cover locking | |
| Balance spring | According to length of barrier arm | 1 | for sapre usage |
| Remote emitter | less than 30m is available | 1 | For remote control |
| Remote conrol handles | less than 30m is available | 2 | For remote control |
| Instruction | in English | 1 | For reference |
| RS485 interface | 1 | Optional | |
| Disc | 1 | Optional | |
| Communication Mould | 1 | Optional | |
| Cover head | 1 | 3 years without fading | |
| Expanion nut | M8 | 4 | Fixing the supporting pole |
Why choose us?
1.One year's free servicing is supplied( not including the arm)
2. Lifetime charged servicing is offered.
3. Technology servicing is supplied
The following situations are charged for servicing (or changing):
1. Broken by wrong installation.
2 Broken by improper voltage.
3. The surfaces of the system destroyed by wrong installation our
use.
4. Broken by natural disaster.
5. Overdue
6. Servicing items out of our promises.
The upgrade and improvement of the product won't be notified if
there is any.
The explaining authority of this product instruction and service
article belong to the production factory.
|
|
